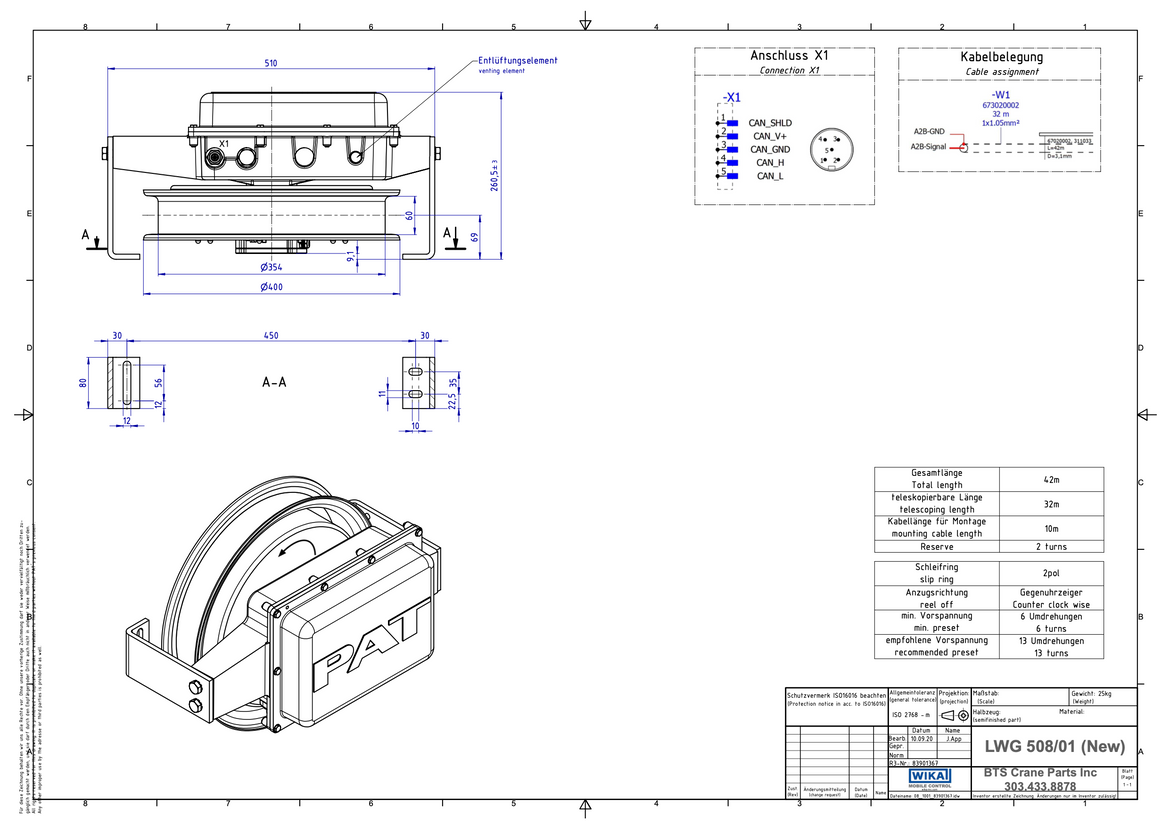

Schematic for the new LWG 508/01 cable reel.  Please note this is a new CAN reel however functions the same.   The schematic shows the wiring of the A2B cable to the new format reel.

LWG508/01 Cable Reel Schematic
