Trimble LSI MBR105 Multi Sensor Display

Code: MBR 105

Category: All Trimble Products

100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
1-4 DAYS DELIVERY

Description
Contact Us

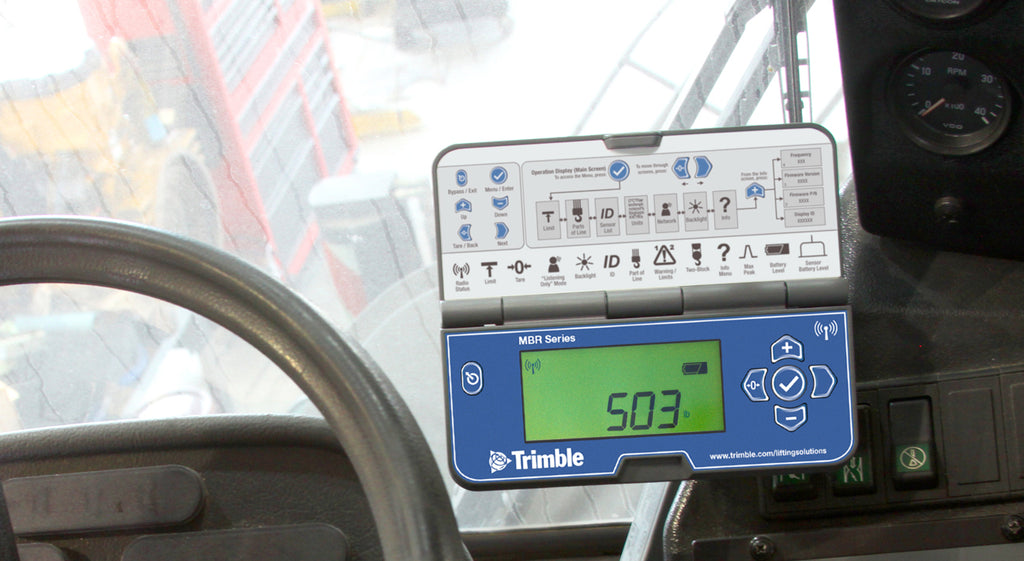

The new Trimble LSI MBR105 Multi Sensor Display is the latest sensor display from Trimble Lifting Solutions designed for the crane and lifting market. Lightweight and portable, this pocket-sized display allows free mobility on the job site while providing in-hand monitoring of multiple LSI wireless Trimble Lifting Solutions sensors. Also available as a low-cost cab-mounted option, the MBR Series Display is an efficient and reliable solution for monitoring load and other devices for a variety of applications.

This display can be used with any combination of sensors including Anti Two Block, Load, Wind Speed, and Boom Angle.

Click Here for Brochure and/or Manual

Trimble LSI MBR 105 Display Features

The MBR Series Displays monitor: load, angle, wind speed, wind gust, trim angle, list angle, rope payout, rope speed, pressure
Wireless handheld (MBR100) version or cab-mounted vehicle-powered (MBR105)
version available
Ambient operating temperature range: 5°F to 122°F (-15°C to 50°C)
Lockout function available with MBR105 cab-mounted version
Monitor the load value for underhook load systems
Open/close for safe storage and screen protection
Attach to optional neck lanyard or wrist strap
Monitor a sensor using Listening Mode without modifying the current RF network
Backlight for night visibility
Radio range (line of sight): 4,260 ft (1,300 m)
One 0.7A lockout output (MBR105 only)
Operates with four "AA" cell batteries, alkaline or lithium, or NiMH rechargeable batteries (MBR100 only)
ISM license free radio; wavelength and modulation optimized for radio communication in industrial environments
Available with 902-928 MHz FCC band or 866-868 MHz CE band radio frequency
IP65 rated composite enclosure
User settable limits for alarms
Max Peak function when programmed with load sensors

The MBR Series Displays monitor: load, angle, wind speed, wind gust, trim angle, list angle, rope payout, rope speed, pressure
Wireless handheld (MBR100) version or cab-mounted vehicle-powered (MBR105)
version available
Ambient operating temperature range: 5°F to 122°F (-15°C to 50°C)
Lockout function available with MBR105 cab-mounted version
Monitor the load value for underhook load systems
Open/close for safe storage and screen protection
Attach to optional neck lanyard or wrist strap
Monitor a sensor using Listening Mode without modifying the current RF network
Backlight for night visibility
Radio range (line of sight): 4,260 ft (1,300 m)
One 0.7A lockout output (MBR105 only)
Operates with four "AA" cell batteries, alkaline or lithium, or NiMH rechargeable batteries (MBR100 only)
ISM license free radio; wavelength and modulation optimized for radio communication in industrial environments
Available with 902-928 MHz FCC band or 866-868 MHz CE band radio frequency
IP65 rated composite enclosure
User settable limits for alarms
Max Peak function when programmed with load sensors
