PAT DS350 LMI

PAT DS350 LMI

Code: DS350 LMI
$ 0.00
In Stock
  • 100% ORIGINAL AND QUALITY

  • 24 MONTHS GUARANTEE

  • 1-4 DAYS DELIVERY

If you are looking for a replacement for your PAT DS350 LMI please reach out to our knowledgeable parts team.  There are many different iterations of the PAT DS350 that were used over the years.  Some of these consoles are still available for replacement and there are upgrade options for the complete DS350 LMI system.  Call us toll free in the US at 855.BODE.TEC or internationally at +1.303.433.8878 for more details.



PAT DS350 Components

PAT DS350 LMI Components

PAT DS350 LMI Overview

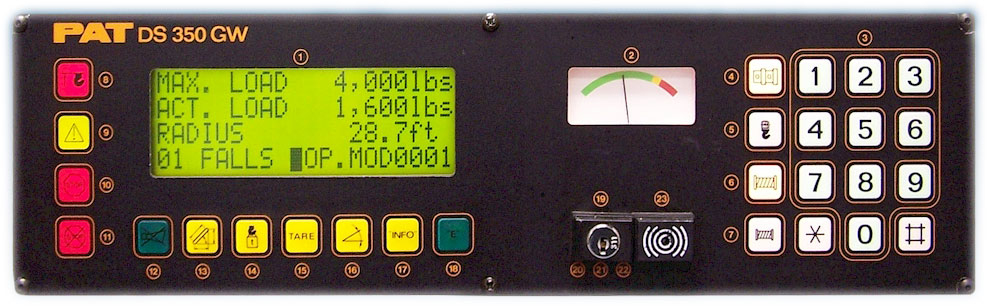

The PAT DS 350G was initially installed by Grove Worldwide the leading U.S. Crane Manufacturer, as standard equipment beginning in 1987. In 1990 the system console was upgraded to the DS-350GW which included a large 4 row digital display and a foil keypad. The DS-350GW remained the standard LMI until superceded by the graphic modular LMI DS 350GM beginning in 1996.



PAT DS350 LMI Features

  • Measures True Load Moment – By measuring the true load moment the DS 350 senses boom dynamics, load swingout, wind loading, shock load and the effects of boom deflection. Load moment is measured in lattice boom cranes with a force transducer in the boom pendants, and in telescopic boom cranes with pressure transducers in the lift cylinders.
  • Digital LCD Display – Large characters and a super-twisted LCD-backlit for night operation, gives operators a clear and easy view from all angles
  • Analog Meter – Along with relative load moment information, it provides a quick, convenient way for operators to see where they are in the load chart.
  • Anti-Two-Block – A special hoist limit switch sounds an alarm and flashes a visual warning of an impending two-block condition.
  • Function Control Lever Lockout – When the LMI System senses an overload or an impending two-block condition, the DS-350 provides a relay output which can be used to engage an optional lever lockout system to override hoist “up” telescope “out” and boom “down.”
  • Self-Diagnostics – Continuously monitors system and sensors. Error codes are displayed to help identify problems and minimize downtime.
PAT DS350 Console Graphical



The PAT DS 350 LMI puts a full range of precise information right in the cab. Designed for use in telescopic boom as well as lattice boom cranes, the DS 350 by PAT Hirschmann is installed and calibrated to the crane’s load chart including specific load and geometric limits or boom length, angle, tip height and operating radius. The systems microprocessor technology allows operators to work with confidence by giving them constant access to the information they need. Having this invaluable data during demanding situations results in more productive lifts. As the global leader in crane information systems, PAT gives you an unmatched combination of product quality and field support. PAT service, parts and training ensure that the DS 350 meets your demands for performance and reliability with fast on-site installation and accurate calibration to your specific needs.



If you are looking for a replacement for your PAT DS350 LMI please reach out to our knowledgeable parts team.  There are many different iterations of the PAT DS350 that were used over the years.  Some of these consoles are still available for replacement and there are upgrade options for the complete DS350 LMI system.  Call us toll free in the US at 855.BODE.TEC or internationally at +1.303.433.8878 for more details.



PAT DS350 Components

PAT DS350 LMI Components

PAT DS350 LMI Overview

The PAT DS 350G was initially installed by Grove Worldwide the leading U.S. Crane Manufacturer, as standard equipment beginning in 1987. In 1990 the system console was upgraded to the DS-350GW which included a large 4 row digital display and a foil keypad. The DS-350GW remained the standard LMI until superceded by the graphic modular LMI DS 350GM beginning in 1996.



PAT DS350 LMI Features

  • Measures True Load Moment – By measuring the true load moment the DS 350 senses boom dynamics, load swingout, wind loading, shock load and the effects of boom deflection. Load moment is measured in lattice boom cranes with a force transducer in the boom pendants, and in telescopic boom cranes with pressure transducers in the lift cylinders.
  • Digital LCD Display – Large characters and a super-twisted LCD-backlit for night operation, gives operators a clear and easy view from all angles
  • Analog Meter – Along with relative load moment information, it provides a quick, convenient way for operators to see where they are in the load chart.
  • Anti-Two-Block – A special hoist limit switch sounds an alarm and flashes a visual warning of an impending two-block condition.
  • Function Control Lever Lockout – When the LMI System senses an overload or an impending two-block condition, the DS-350 provides a relay output which can be used to engage an optional lever lockout system to override hoist “up” telescope “out” and boom “down.”
  • Self-Diagnostics – Continuously monitors system and sensors. Error codes are displayed to help identify problems and minimize downtime.
PAT DS350 Console Graphical



The PAT DS 350 LMI puts a full range of precise information right in the cab. Designed for use in telescopic boom as well as lattice boom cranes, the DS 350 by PAT Hirschmann is installed and calibrated to the crane’s load chart including specific load and geometric limits or boom length, angle, tip height and operating radius. The systems microprocessor technology allows operators to work with confidence by giving them constant access to the information they need. Having this invaluable data during demanding situations results in more productive lifts. As the global leader in crane information systems, PAT gives you an unmatched combination of product quality and field support. PAT service, parts and training ensure that the DS 350 meets your demands for performance and reliability with fast on-site installation and accurate calibration to your specific needs.
