Trimble LSI GS010-01 Crane Boom Angle Sensor

Code: GS010-01

$ 1,204.00

In Stock

Quantity

Category: Angle Sensors, Trimble Boom Angle, Trimble Featured Home Page

100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
1-4 DAYS DELIVERY

Description
Contact Us

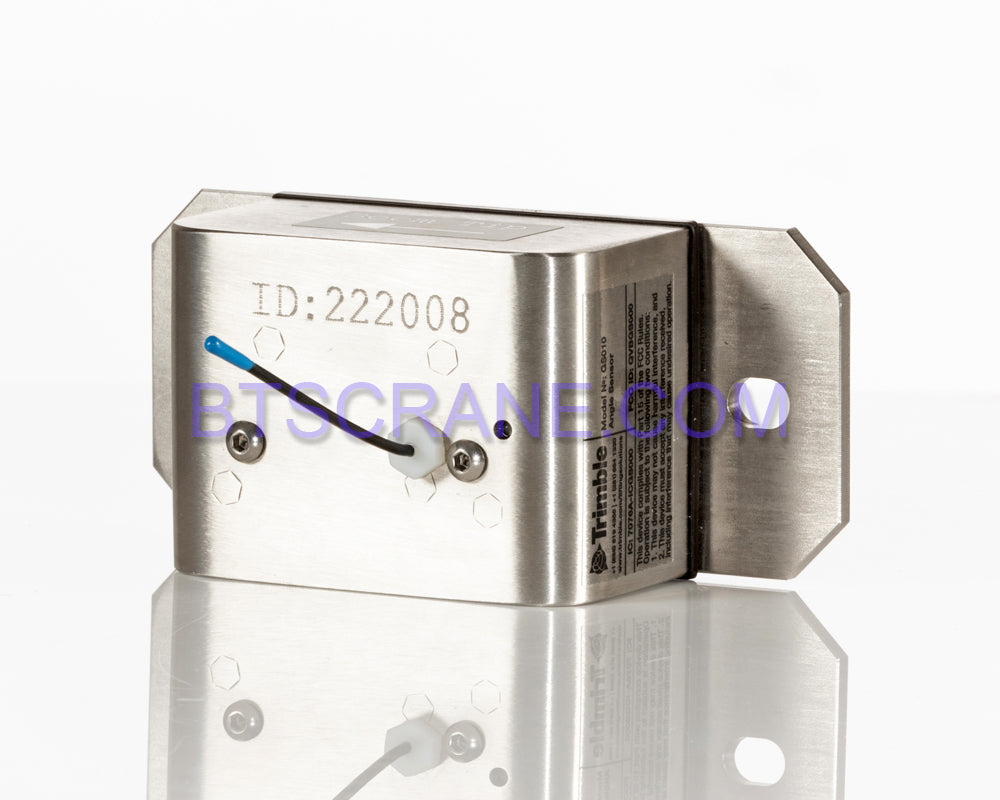

The Trimble LSI GS010-01 crane boom angle sensor or wireless inclinometer will accurately measure all of the following: Boom Angle, Luffing Jib Angle, List & Trim and Out of Level. It can also be used as an inclinometer to measure angles in custom applications

Features:

No moving parts, uses electronic chip
Direct Sequence-Spread Spectrum-Two Way Communication
Transmission Range: 4,300 feet; 1,300 meters
Ships as standard with 1-"D" Cell lithium battery, 2-4 years battery life
Users can replace lithium battery with "D" Cell alkaline battery if lithium replacement battery is unavailable when battery goes low. Battery life is 6 months to 1 year using alkaline
Stainless steel housing
Easy calibration, bring boom to zero degrees, angle sensor has leveling light for zero degree calibration. No need to move boom to high angle for calibration
3/10th's of a degree resolution
Potted electronics for increased water proof protection
Operating temperature: -30F to +180F; -35C to +85
2 year warranty against defects
Sensor can be left hand or right hand cab mounted, will automatically adjust for the side it is installed on
Ideal for monitoring: Main Boom, Luffing Jib, Live Mast, Barge List Angle, Custom Applications
Standard operating range is -180 degrees to +130 degrees, barge list angle sensor with a range from -5 degrees to +5 degrees

Can also be ordered as a 360 degree sensor

Features:

No moving parts, uses electronic chip
Direct Sequence-Spread Spectrum-Two Way Communication
Transmission Range: 4,300 feet; 1,300 meters
Ships as standard with 1-"D" Cell lithium battery, 2-4 years battery life
Users can replace lithium battery with "D" Cell alkaline battery if lithium replacement battery is unavailable when battery goes low. Battery life is 6 months to 1 year using alkaline
Stainless steel housing
Easy calibration, bring boom to zero degrees, angle sensor has leveling light for zero degree calibration. No need to move boom to high angle for calibration
3/10th's of a degree resolution
Potted electronics for increased water proof protection
Operating temperature: -30F to +180F; -35C to +85
2 year warranty against defects
Sensor can be left hand or right hand cab mounted, will automatically adjust for the side it is installed on
Ideal for monitoring: Main Boom, Luffing Jib, Live Mast, Barge List Angle, Custom Applications
Standard operating range is -180 degrees to +130 degrees, barge list angle sensor with a range from -5 degrees to +5 degrees

Can also be ordered as a 360 degree sensor
