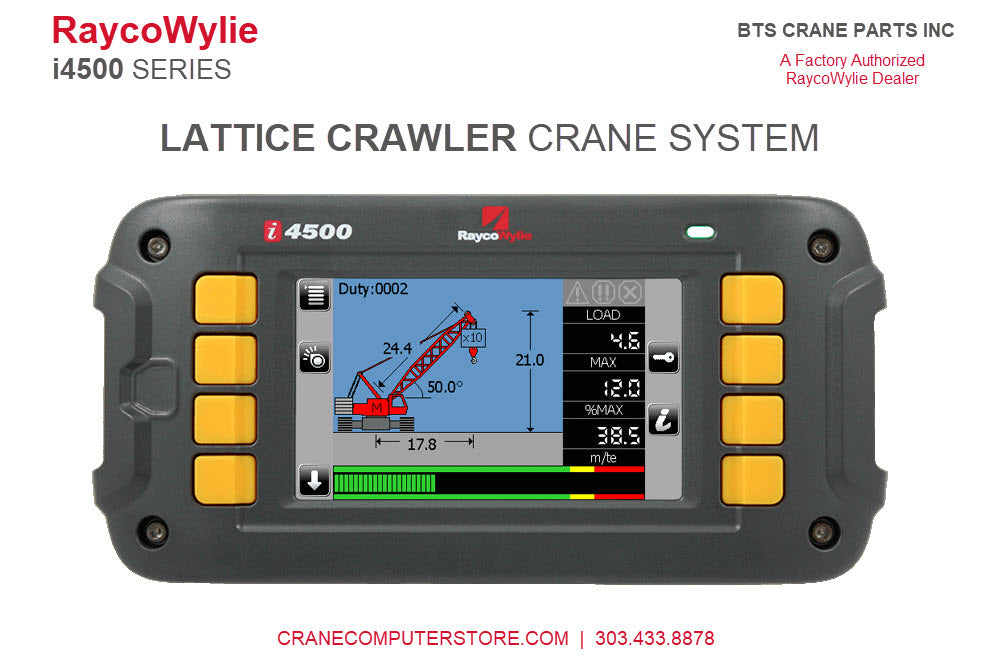

i4500 RaycoWylie Display Crane LMI Computer Description

The i4500 RaycoWylie display is a computerized crane monitoring system designed to help the operator to safely operate the crane and to respect the maximum load authorized by the crane manufacturer.

The indicator automatically monitors the load lifted by the crane and constantly compares it with the maximum load allowed for each position. The display of the system allows the operator to see continuous information related to the actual load lifted by the crane. It also warns the operator when he approaches the limit or goes over the capacity of the crane.


The system has sensors installed on the machine in order to measure or verify:

• The boom angle
• The hook load
• The two-block condition (A2B)


The system takes this information to check overload conditions and to measure the operating radius and the crane capacity. A slew sensor (optional) can also be installed to measure the boom position (on 360 degrees) and give extra information to the operator. The display is located inside the operator’s cab to provide an easy access to the information. All the sensors are linked through a CAN bus network (Controlled Area Network).

The actual load is expressed as a percentage of the permitted load (maximum load or safe working load - % SWL). If this percentage exceeds a preset value, alarms and safety functions are activated. The required crane duty charts are stored in a non-volatile memory and can only be modified with the approval of the crane manufacturer. The calculated crane parameters and calibration data are stored in
an additional non-volatile memory.

For COMPLETE / FULL LMI replacement systems click here

i4500 Crane LMI Computer Display Description


The i4500 display has been developed to meet the ever demanding regulations and standards of the crane and lifting industry while maintaining simple, clear information for the operator.

Using a full color display in 4.3” screen size means there is always an option to suit your requirements. This coupled with self-diagnostics, operator usability, and ease of calibration keeps the i4500 series ahead of the competition. The systems use the CAN bus J1939 protocol to communicate with each interface, constantly monitoring all the cranes sensors to give clear accurate information to the operator, the CAN bus network also allows huge amounts of flexibility allowing you to add or remove sensors when required at any time throughout the life of the equipment.

The i4500 series has been developed with your crane in mind, whether it’s a 5te telescopic mobile, 100te crawler, 80m luffing tower, 10te flat top tower, swan-neck tower, port crane, barge crane, rail crane or even a complete bespoke machine the i4500 series from RaycoWylie will have the solution for your machine.

i4500 RaycoWylie Display Diagram

i4500 Crane Computer LMI Display Features

• Centralised information on one screen
• Colour screen
• High resolution LCD screen readable in direct sunlight
• Night mode images
• Operator selected units m/te, m/kg, ft/klbs, ft/tons, ft/long tons, ft/lbs
• Camera input ready (only available on 4507 & 4510)
• Engineered to fit all applications Multilingual interface for international use Choice of 10 languages
