i4000 RaycoWylie Crane Wind Speed Display

The i4000 wind speed display is a computerized system designed to provide the operator with the necessary information to operate the crane safely, and within the nominal speed limits authorized by the crane manufacturer.

Designed to work in conjunction with the RaycoWylie LoRA Wind Speed Sensor / Anemometer available HERE

The system’s display unit provides the operator continuous information regarding the real time wind speed. It also warns the operator whenever he approaches or exceeds the maximum speed limit.  The system supports one or two wind speed sensor(s).  The system display is located inside the cabin, close to the operator controls for easy access to the information. All sensors are communicating through a wireless protocol to the i4000 display.

RaycoWylie Dealer

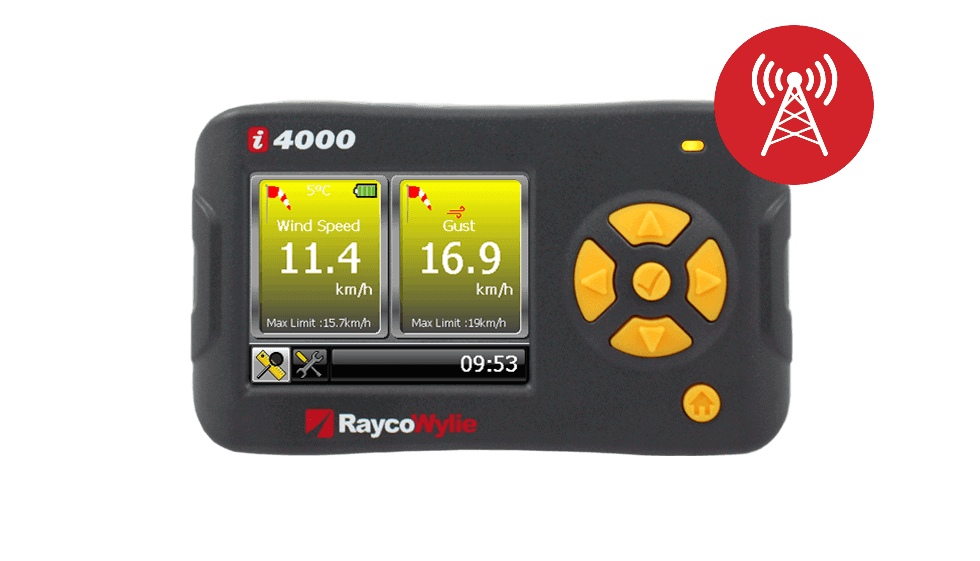

i4000 RaycoWylie Display Wind Mode Example

i4000 Wind Speed RaycoWylie



The maximum speed limit is evaluated by the crane manufacturer, the operator can then set the allowed limit using the i4000 menus.

It is possible to display the limit using one of the following units :
  • Kilometers per hour.
  • Miles per hour
  • Feets per second
  • meters per second
  • Knots
There are two different modes used for displaying the speed limit, there is the wind speed mode and the wind gust mode. The wind speed mode displays the average wind speed of the last three seconds while the gust speed mode shows the highest speed captured in the last five minutes. It is possible to have a limit for each mode simultaneously.



i4000 Rayco Wylie Display Size Specifications



i4000 RaycoWylie Display Technical Specifications

While in the wind speed mode, the system measures the speed for three seconds and then calculate the average speed. In order for the indicator to send a new value to the display, at least one of these conditions must be met :

  • The wind is higher than 2km/h from the last sent value.
  • The wind is less than 4km/h from the previously sent value.
  • The wind does not change (between +2 and -4km/h from the last sent value) during 80 seconds.
It is also possible to get an event recorder by accessing the calibration mode.



i4000 Display Specifications Data

i4000 wind speed system specifications



i4000 RaycoWylie Wireless Display Features

  • Diagnostic menu and continuous error detection and recording
  • User friendly intuitive display with inbuilt audible and visual alarms
  • Easy calibration via keypad. No additional programming hardware necessary
  • Quick and easy installation
  • USB file transfers
  • Multi-language: English, Spanish, French
  • Selectable units
  • Using 915Mhz or 868Mhz for increased range and signal reliability
  • Dipole antenna
  • Easy installation and sensor replacement
i4000 Crane Wind Speed System RaycoWylie

i4000 Crane Wind Speed System Safety Recommendations

Please make sure you respect the safety rules currently in force in the country where you are using the i4000 system, in order to reduce the risk of injuries or of damages to the machinery. Please read the following safety instructions before trying to operate the system.
  1. The machine operator must configure the crane and the work environment correctly. A bad configuration could threaten the reliability of the system and cause dangerous situations
  2. The i4000 system is purely an aid to the operator. It is the operator’s responsibility to handle the crane with caution, since the i4000 system will not necessarily prevent damages to the machine due to an overload or other causes
  3. The proper functioning of the equipment depends on a daily inspection and on compliance with this manual’s operating instructions.
  4. The crane should always be operated smoothly and at a safe speed.



RaycoWylie Product Brochure Download

RaycoWylie Product Brochure Authorized Dealer



i4000 RaycoWylie Crane Wind Speed Display

The i4000 wind speed display is a computerized system designed to provide the operator with the necessary information to operate the crane safely, and within the nominal speed limits authorized by the crane manufacturer.

Designed to work in conjunction with the RaycoWylie LoRA Wind Speed Sensor / Anemometer available HERE

The system’s display unit provides the operator continuous information regarding the real time wind speed. It also warns the operator whenever he approaches or exceeds the maximum speed limit.  The system supports one or two wind speed sensor(s).  The system display is located inside the cabin, close to the operator controls for easy access to the information. All sensors are communicating through a wireless protocol to the i4000 display.

RaycoWylie Dealer



i4000 RaycoWylie Display Wind Mode Example

i4000 Wind Speed RaycoWylie



The maximum speed limit is evaluated by the crane manufacturer, the operator can then set the allowed limit using the i4000 menus.

It is possible to display the limit using one of the following units :
  • Kilometers per hour.
  • Miles per hour
  • Feets per second
  • meters per second
  • Knots
There are two different modes used for displaying the speed limit, there is the wind speed mode and the wind gust mode. The wind speed mode displays the average wind speed of the last three seconds while the gust speed mode shows the highest speed captured in the last five minutes. It is possible to have a limit for each mode simultaneously.



i4000 Rayco Wylie Display Size Specifications



i4000 RaycoWylie Display Technical Specifications

While in the wind speed mode, the system measures the speed for three seconds and then calculate the average speed. In order for the indicator to send a new value to the display, at least one of these conditions must be met :

  • The wind is higher than 2km/h from the last sent value.
  • The wind is less than 4km/h from the previously sent value.
  • The wind does not change (between +2 and -4km/h from the last sent value) during 80 seconds.
It is also possible to get an event recorder by accessing the calibration mode.



i4000 Display Specifications Data

i4000 wind speed system specifications



i4000 RaycoWylie Wireless Display Features

  • Diagnostic menu and continuous error detection and recording
  • User friendly intuitive display with inbuilt audible and visual alarms
  • Easy calibration via keypad. No additional programming hardware necessary
  • Quick and easy installation
  • USB file transfers
  • Multi-language: English, Spanish, French
  • Selectable units
  • Using 915Mhz or 868Mhz for increased range and signal reliability
  • Dipole antenna
  • Easy installation and sensor replacement
i4000 Crane Wind Speed System RaycoWylie

i4000 Crane Wind Speed System Safety Recommendations

Please make sure you respect the safety rules currently in force in the country where you are using the i4000 system, in order to reduce the risk of injuries or of damages to the machinery. Please read the following safety instructions before trying to operate the system.
  1. The machine operator must configure the crane and the work environment correctly. A bad configuration could threaten the reliability of the system and cause dangerous situations
  2. The i4000 system is purely an aid to the operator. It is the operator’s responsibility to handle the crane with caution, since the i4000 system will not necessarily prevent damages to the machine due to an overload or other causes
  3. The proper functioning of the equipment depends on a daily inspection and on compliance with this manual’s operating instructions.
  4. The crane should always be operated smoothly and at a safe speed.



RaycoWylie Product Brochure Download

RaycoWylie Product Brochure Authorized Dealer
