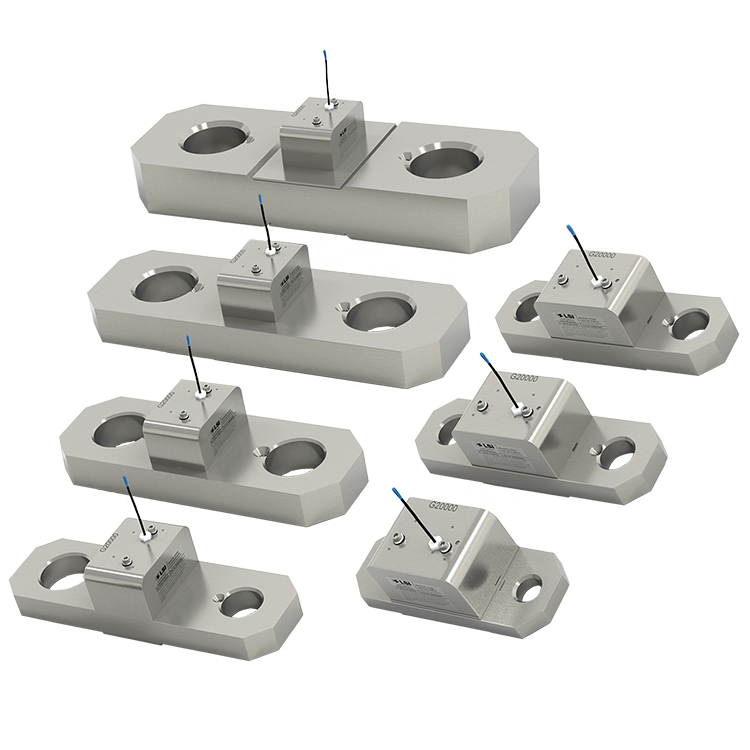

GC060 Trimble LSI Wireless 60K Load Cell

GC060 Trimble LSI Wireless 60K Load Cell

Code: GC060
  • 100% ORIGINAL AND QUALITY

  • 24 MONTHS GUARANTEE

  • 1-4 DAYS DELIVERY

$4,110 MSRP - PLEASE NOTE, DUE TO DEMAND CURRENT STOCK FLUCTUATES DAILY, PLEASE CONTACT US DIRECTLY TO VERIFY AVAILABILITY & PRICING

GC060 Trimble LSI wireless 60K load cell for applications utilizing the GS550 or GS820 crane warning systems.  1-1/8" to 1-1/2" Wire Rope Size

Trimble GC060 Load Cell Features

  • 4,000 Foot, 1,300 Meter Transmission Range
  • Up to 4 Year Standard Battery Life
  • 2 Year Warranty Agains Defects
  • Pre Calibrated Saving Time and Money
  • Potted Electronics for Waterproofing
  • Accuracy is .1% on a single part of line, 1% on a multi part



Trimble GC060 Load Cell Information

The Trimble GC060 load cells are installed inline on cranes and lifting equipment, and are a critically important elements in the structural integrity of the safe lifting of the load.

Trimble load cells set the industry standard for load cell quality control programs. Trimble's specific quality control program is designed to ensure that every single load cell is strictly tested and certified.

Each GC060 load cell is built from 17-4 stainless steel. The 17-4 provides superior strength yield and excellent corrosion resistance. To ensure that your system setup time is minimized, each load cell ships pre-calibrated thereby eliminating the need for time consuming calibration and testing. Simply install the load cell, connect wireless to the GS550 or GS820 display.

Each load cell ships standard with a military grade “D’ cell lithium battery that is able to withstand temperature variances from the Canadian Arctic to the deserts of Dubai. Our load cells are rated from an operating temperature of -30ºF to +180ºF; -35ºC to +85ºC. Trimble temperature compensates your load cells to ensure a consistent load value regardless of temperature or location

Each sensor is equipped with a voltage switcher allowing a worldwide readily available “D” cell alkaline battery to be installed into the transmitter in the event you cannot easily source a lithium battery.

Accuracy on a single part of line is an impressive .1% and averages 1% on multiple parts of line.

Trimble always wants to provide the utmost reliability and takes the extra steps to pot electronics in a gel that eliminates moisture failure on the circuit board.

CSA explosion proof load cell options are naturally also available.



$4,110 MSRP - PLEASE NOTE, DUE TO DEMAND CURRENT STOCK FLUCTUATES DAILY, PLEASE CONTACT US DIRECTLY TO VERIFY AVAILABILITY & PRICING

GC060 Trimble LSI wireless 60K load cell for applications utilizing the GS550 or GS820 crane warning systems.  1-1/8" to 1-1/2" Wire Rope Size

Trimble GC060 Load Cell Features

  • 4,000 Foot, 1,300 Meter Transmission Range
  • Up to 4 Year Standard Battery Life
  • 2 Year Warranty Agains Defects
  • Pre Calibrated Saving Time and Money
  • Potted Electronics for Waterproofing
  • Accuracy is .1% on a single part of line, 1% on a multi part



Trimble GC060 Load Cell Information

The Trimble GC060 load cells are installed inline on cranes and lifting equipment, and are a critically important elements in the structural integrity of the safe lifting of the load.

Trimble load cells set the industry standard for load cell quality control programs. Trimble's specific quality control program is designed to ensure that every single load cell is strictly tested and certified.

Each GC060 load cell is built from 17-4 stainless steel. The 17-4 provides superior strength yield and excellent corrosion resistance. To ensure that your system setup time is minimized, each load cell ships pre-calibrated thereby eliminating the need for time consuming calibration and testing. Simply install the load cell, connect wireless to the GS550 or GS820 display.

Each load cell ships standard with a military grade “D’ cell lithium battery that is able to withstand temperature variances from the Canadian Arctic to the deserts of Dubai. Our load cells are rated from an operating temperature of -30ºF to +180ºF; -35ºC to +85ºC. Trimble temperature compensates your load cells to ensure a consistent load value regardless of temperature or location

Each sensor is equipped with a voltage switcher allowing a worldwide readily available “D” cell alkaline battery to be installed into the transmitter in the event you cannot easily source a lithium battery.

Accuracy on a single part of line is an impressive .1% and averages 1% on multiple parts of line.

Trimble always wants to provide the utmost reliability and takes the extra steps to pot electronics in a gel that eliminates moisture failure on the circuit board.

CSA explosion proof load cell options are naturally also available.
