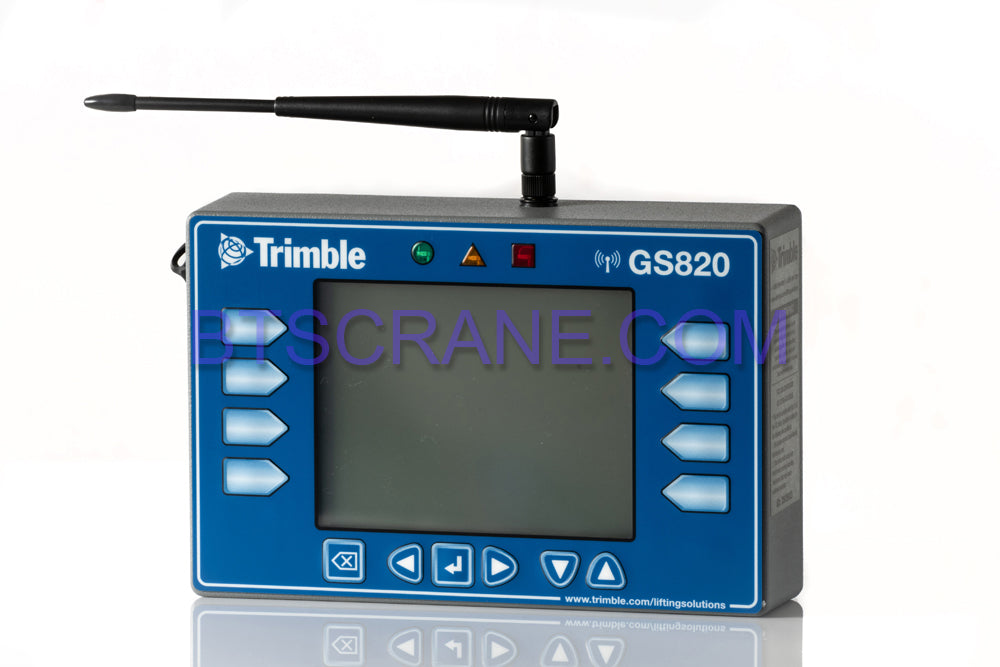

Trimble LSI GS820 Wireless Display

Trimble LSI GS820 Wireless Display

Code: GS820
$ 3,504.00
In Stock
  • 100% ORIGINAL AND QUALITY

  • 24 MONTHS GUARANTEE

  • 1-4 DAYS DELIVERY

The LSI Trimble GS820 Graphical Display serves as the upgraded console and computer for a wireless crane warning or LMI replacement system.  Users can view up to 20 fields of data from the 6" sunlight readable graphical display with transflective technology for excellent night time readability.  The Trimble GS830 has a reception range up to 4,300 feet, the ability to monitor up to 32 sensors, and the capability to easily upload crane specific load charts that trigger crane lockouts.



Trimble LSI GS820



LSI Trimble GS820 Graphical Display Features

  • 6" Transflective sunlight readable display
  • Monitors up to 32 sensors
  • Reception range up to 4,300 feet
  • Crane specific load charts can be installed
  • System can trigger preinstalled crane lockouts
  • User settable limits and alarms
  • Operating temperature -4°F to +122°F; -20°C to +50°C
  • 2 Year manufacturers warranty against defects

LSI Trimble GS820 Brochure

LSI Trimble GS820 Brochure



The Trimble GS820 computer combines the ability to monitor a wide range of sensors with the capability of adding load charts to the system. It features a built in data logger for logging critical information and the versatility to monitor a combination of many different types of sensors.

All communication between Trimble LSI sensors and the GS820 Graphical Display is via spread spectrum direct sequence two way communication. This innovative technology eliminates cables and all the potential for water intrusion, corrosion, breakage while also allowing for reliable communication in the harshest of radio frequency environments.



Trimble GS820 Specifications Sheet

LSI Trimble GS820 Specifications Sheet



The Trimble LSI GS820 wireless display is a “plug and play” product. If there is a sensor failure, the system immediately informs the operator of the location of the issue. Most often the operator can resolve the problem, which eliminates the need to have an on-site technician.

Should you ever need to replace a sensor, the new sensor’s ID will automatically replace the old ID in the display. This only takes a few seconds to complete.

Often in the field, each application has different requirements for system security. The GS820 offers you the ability to easily set password restrictions for all key operating aspects of the system. In addition, the display has a supervisor password level. This extra level of security allows only a supervisor to access restricted areas of the display.

Trimble GS820 Quick Reference Guide

Trimble GS820 Quick Reference Guide BTS Crane Parts



We can customize the GS820 Display screen to show graphics that are useful for your specific application. Utilizing a transflective LCD display, the GS820 will automatically adjust the contrast and brightness to suit active light conditions and readability.

The GS820 Graphical Display will trip function lockouts on cranes with installed solenoid valves when limits are exceeded.

Each Trimble LSI GS820 Wireless Display ships standard with a built in data logger that can monitor up to 32,000 events. Data is downloaded with the onboard USB port to a USB drive. You can also utilize the USB port to upload load charts via a USB drive. The display can store over 3,500 pages of load charts.

Users also have the option to order a stainless steel GS820 Display that ships standard with CSA-US Class 1, Div 2 certifications for marine/ offshore/refinery applications.





The LSI Trimble GS820 Graphical Display serves as the upgraded console and computer for a wireless crane warning or LMI replacement system.  Users can view up to 20 fields of data from the 6" sunlight readable graphical display with transflective technology for excellent night time readability.  The Trimble GS830 has a reception range up to 4,300 feet, the ability to monitor up to 32 sensors, and the capability to easily upload crane specific load charts that trigger crane lockouts.



Trimble LSI GS820



LSI Trimble GS820 Graphical Display Features

  • 6" Transflective sunlight readable display
  • Monitors up to 32 sensors
  • Reception range up to 4,300 feet
  • Crane specific load charts can be installed
  • System can trigger preinstalled crane lockouts
  • User settable limits and alarms
  • Operating temperature -4°F to +122°F; -20°C to +50°C
  • 2 Year manufacturers warranty against defects

LSI Trimble GS820 Brochure

LSI Trimble GS820 Brochure



The Trimble GS820 computer combines the ability to monitor a wide range of sensors with the capability of adding load charts to the system. It features a built in data logger for logging critical information and the versatility to monitor a combination of many different types of sensors.

All communication between Trimble LSI sensors and the GS820 Graphical Display is via spread spectrum direct sequence two way communication. This innovative technology eliminates cables and all the potential for water intrusion, corrosion, breakage while also allowing for reliable communication in the harshest of radio frequency environments.



Trimble GS820 Specifications Sheet

LSI Trimble GS820 Specifications Sheet



The Trimble LSI GS820 wireless display is a “plug and play” product. If there is a sensor failure, the system immediately informs the operator of the location of the issue. Most often the operator can resolve the problem, which eliminates the need to have an on-site technician.

Should you ever need to replace a sensor, the new sensor’s ID will automatically replace the old ID in the display. This only takes a few seconds to complete.

Often in the field, each application has different requirements for system security. The GS820 offers you the ability to easily set password restrictions for all key operating aspects of the system. In addition, the display has a supervisor password level. This extra level of security allows only a supervisor to access restricted areas of the display.

Trimble GS820 Quick Reference Guide

Trimble GS820 Quick Reference Guide BTS Crane Parts



We can customize the GS820 Display screen to show graphics that are useful for your specific application. Utilizing a transflective LCD display, the GS820 will automatically adjust the contrast and brightness to suit active light conditions and readability.

The GS820 Graphical Display will trip function lockouts on cranes with installed solenoid valves when limits are exceeded.

Each Trimble LSI GS820 Wireless Display ships standard with a built in data logger that can monitor up to 32,000 events. Data is downloaded with the onboard USB port to a USB drive. You can also utilize the USB port to upload load charts via a USB drive. The display can store over 3,500 pages of load charts.

Users also have the option to order a stainless steel GS820 Display that ships standard with CSA-US Class 1, Div 2 certifications for marine/ offshore/refinery applications.
