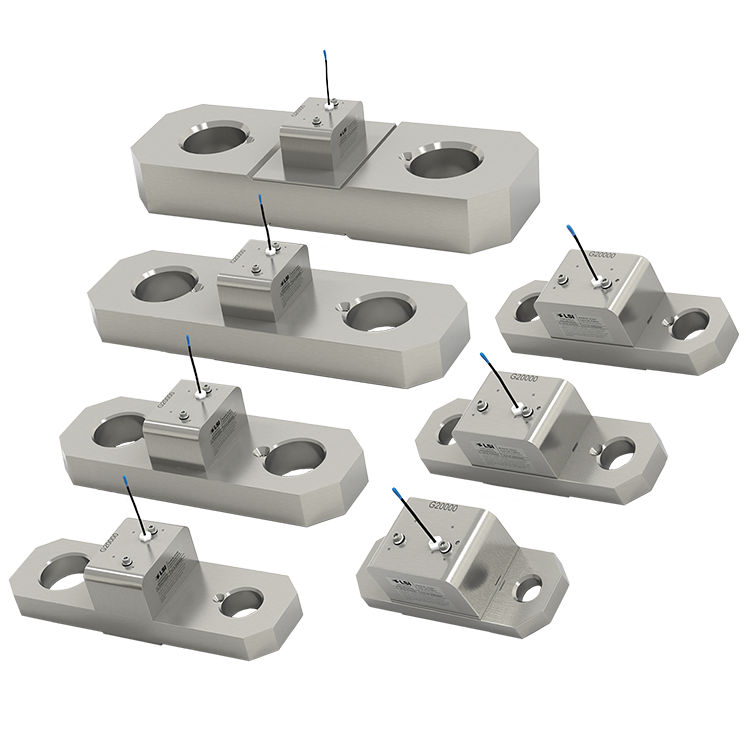

GC018-CSA Trimble LSI Wireless 18K Load Cell

Code: GC018-CSA

Category: All Trimble Products, Load Cells, Trimble CSA Explosion Proof, Trimble LSI Load Cell

100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
1-4 DAYS DELIVERY

Description
Contact Us

$3,170 MSRP - PLEASE NOTE, DUE TO DEMAND CURRENT STOCK FLUCTUATES DAILY, PLEASE CONTACT US DIRECTLY TO VERIFY AVAILABILITY & PRICING

Trimble GC 018 CSA LSI Wireless Load Cell Class 1 Div 1 explosion proof

Wireless Load Cells from Trimble’s Lifting Solutions Division are ideal for installation inline on cranes and lifting equipment. They are critically important elements in the structural integrity of the safe lifting of the load.

Each wireless load cell is built from 17-4 stainless steel. The 17-4 provides a very strong strength yield and excellent corrosion resistance.

To ensure that your system setup time is minimized, each load cell ships pre-calibrated, eliminating the need for test weights. Simply install the load cell, turn on the display and the system is ready to go to work.

We ship each load cell standard with a long life lithium battery. The GC018 CSA Trimble LSI wireless load cells are rated from an operating temperature of -30F to +180F; -35C to +85C. Each sensor is equipped with a voltage switcher allowing a “D” cell alkaline battery to be installed into the transmitter. This would only be in the event you cannot easily source a lithium battery once the 3-week low battery warning activates through the system display.

The load cells are temperature compensated to ensure a consistent load value regardless of temperature or location. We burn in our load cells in a temperature chamber to ensure maximum reliability and durability. Accuracy on a single part of line is .1% and averages 1% on multiple parts of line. Trimble always wants to provide reliable products. We take extra steps to pot our electronics in a gel that eliminates moisture failure on the circuit board.

$3,170 MSRP - PLEASE NOTE, DUE TO DEMAND CURRENT STOCK FLUCTUATES DAILY, PLEASE CONTACT US DIRECTLY TO VERIFY AVAILABILITY & PRICING

Trimble GC 018 CSA LSI Wireless Load Cell Class 1 Div 1 explosion proof

Each wireless load cell is built from 17-4 stainless steel. The 17-4 provides a very strong strength yield and excellent corrosion resistance.
