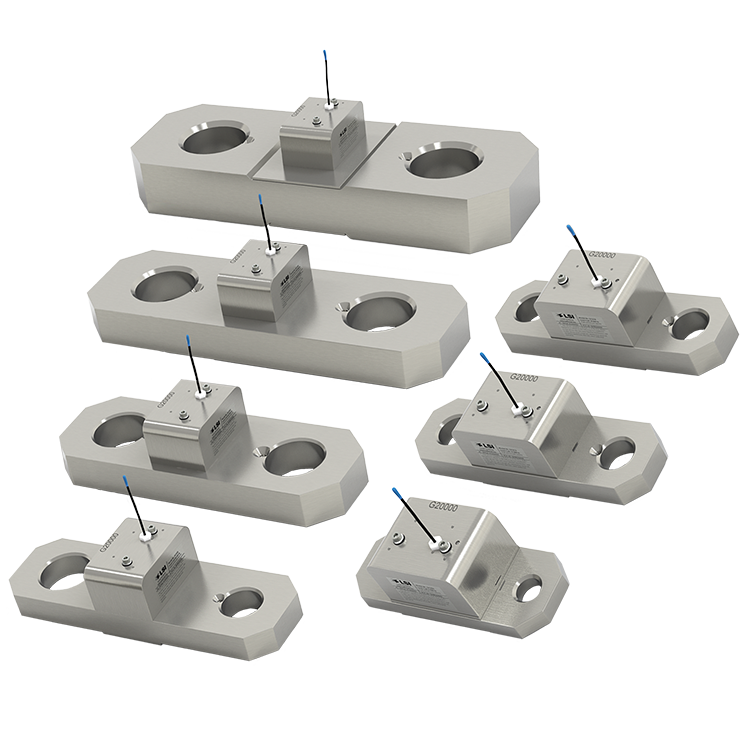

Trimble GC 018 LSI Wireless Load Cell

Code: GC 018

$ 2,798.00

In Stock

Quantity

Category: All Trimble Products, Featured Products, Load Cells, Trimble Featured Home Page, Trimble LSI Load Cell

100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
1-4 DAYS DELIVERY

Description
Contact Us

GC018 LSI WIRELESS 18K LOAD CELL FOR 3/4" WIRE ROPE

Trimble GC 018 Load Cell Features:

Potted electronics in a gel that eliminates moisture failure on the circuit board
Accuracy on a single part of line is .1% and averages 1% on multiple parts of line
Built from 17-4 stainless steel which provides a very strong strength yield and excellent corrosion resistance
Each load cell ships pre calibrated to ensure that your system setup time is minimized and eliminating the need for test weights
Rated from an operating temperature of -30F to +180F or -35C to +85C
Load cells are temperature compensated to ensure a consistent load value regardless of temperature or location

Wireless Load Cells from Trimble’s Lifting Solutions Division are ideal for installation inline on cranes and lifting equipment. They are critically important elements in the structural integrity of the safe lifting of the load. Simply install the load cell, turn on the display and the system is ready to go to work. We ship each load cell standard with a “D’ cell lithium battery. Each sensor is equipped with a voltage switcher allowing a “D” cell alkaline battery to be installed into the transmitter. This would only be in the event you cannot easily source a lithium battery once the 3-week low battery warning activates through the system display.

Trimble GC018 International Shipping Specifications

ECCN: EAR99
SCHEDULE B: 8423890000
HTSUS CODE: 8423901000
INTRASTAT: 8431498000
COUNTRY OF ORIGIN: USA
WEIGH: 5.3KG
SIZE: PLEASE SEE SIZE SCHEMATIC ABOVE

GC018 LSI WIRELESS 18K LOAD CELL FOR 3/4" WIRE ROPE

Trimble GC 018 Load Cell Features:

Potted electronics in a gel that eliminates moisture failure on the circuit board
Accuracy on a single part of line is .1% and averages 1% on multiple parts of line
Built from 17-4 stainless steel which provides a very strong strength yield and excellent corrosion resistance
Each load cell ships pre calibrated to ensure that your system setup time is minimized and eliminating the need for test weights
Rated from an operating temperature of -30F to +180F or -35C to +85C
Load cells are temperature compensated to ensure a consistent load value regardless of temperature or location

Trimble GC018 International Shipping Specifications

ECCN: EAR99
SCHEDULE B: 8423890000
HTSUS CODE: 8423901000
INTRASTAT: 8431498000
COUNTRY OF ORIGIN: USA
WEIGH: 5.3KG
SIZE: PLEASE SEE SIZE SCHEMATIC ABOVE
