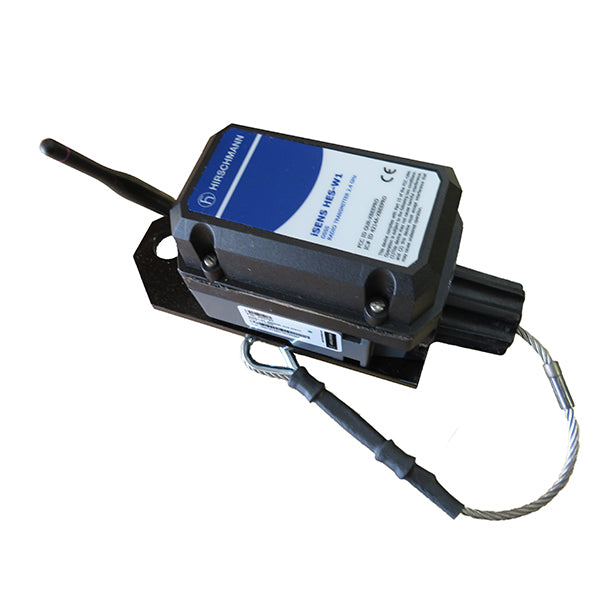

Hirschmann ISENS HES W1

Code: ISENS HES W1

Sale

~~$ 1,899.00~~ $ 1,589.00

In Stock

Quantity

Category: Anti Two Block, Hirschmann Featured Home Page, PAT Hirschmann Anti Two Block A2B

100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
1-4 DAYS DELIVERY

Description
Contact Us

Hirschmann Wireless Anti Two Block Switch, B5 Technology, iSENS HES W1

PLEASE NOTE: this is NOT a direct replacement for the older PAT B3 wireless anti two block switch and is NOT compatible with the PRS40, PRS80, or DS85 consoles. Please check markings on your current switch and confirm that it is labeled with "B5" and not "B3" Please contact us if you have any questions.

ISENS HES W1 Switch Features

Quick and easy installation no wires
Sealed and potted electronics for water resistance
Transmission range up to 900 feet
Extended battery life
Easily move from main boom to jib
iSENS HES-W1

The ISENS - HES - W1 wireless A2B switch is built for reliability and precision. This sensor offers the highest level of safety while working with mobile machines. The installation is quick and easy due to its wireless connectivity. Electronics have been carefully sealed and potted to provide superior water protection. With a transmission range of 900 feet you can be assured of superior connectivity.

Hirschmann ISENS HES W1 Location

Hirschmann Wireless Anti Two Block Switch, B5 Technology, iSENS HES W1

ISENS HES W1 Switch Features

Quick and easy installation no wires
Sealed and potted electronics for water resistance
Transmission range up to 900 feet
Extended battery life
Easily move from main boom to jib
iSENS HES-W1

Hirschmann ISENS HES W1 Location
